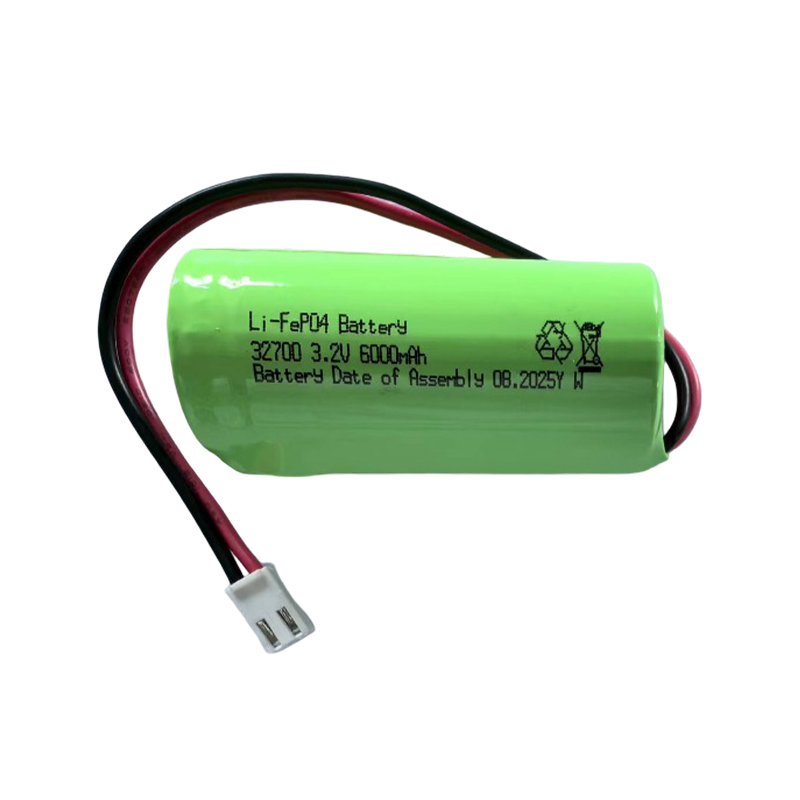

32700 3.2V 6000mAh Special Lithium Battery

Technical parameters and characteristics
Basic parameters
Voltage and capacity: Nominal voltage 3.2V, charging cut-off voltage 3.65V, discharging cut-off voltage 2.5V, typical capacity 6000mAh, energy approximately 19.2Wh, internal resistance ≤8mΩ (AC 1kHz), cycle life ≥3000 times (1C charge and discharge, capacity retention rate ≥85%).
Physical characteristics: The dimensions are 32mm in diameter and 70mm in length, with a weight of approximately 140-170g. Customized packaging is supported (such as steel shell cylinders, built-in protection plates, and liquid cooling heat dissipation modules).
Charging and discharging performance: Supports 2C fast charging (12A charging, fully charged in about 30 minutes), maximum continuous discharge current 18A (3C), pulse discharge current 30A (5 seconds), stable voltage platform (3.2-3.3V fluctuation < 2mV), self-discharge rate < 1% per month.
Temperature adaptability: Operating temperature -30℃ to 70℃, storage temperature -20℃ to 45℃. At a low temperature of -30℃, the capacity retention rate is ≥75% (with a heating system). At a high temperature of 70℃, it is necessary to avoid full charge storage.


Materials and Structures
Cathode material: Lithium iron phosphate (LiFePO₄) adopts a nano-modification + carbon coating + silicon doping process, with ionic conductivity increased by 40%, thermal decomposition temperature over 900℃, and no risk of thermal runaway.
Negative electrode and electrolyte: Silicon-carbon composite negative electrode (capacity density increased by 30%), electrolyte containing VC/FEC/PS additives, separator is a nano-scale ceramic-coated polyolefin porous membrane, supporting rapid ion transport and overheat protection.
Packaging design: The steel shell has a compressive strength of ≥800kgf. It is equipped with dual safety valves, PTC explosion-proof components, and an intelligent temperature control module. It supports flat head/pointed head designs (the pointed head is equipped with an intelligent BMS protection board), is compatible with standard 32700 battery compartments, and can be optionally equipped with heat dissipation fins or liquid cooling systems.
Core advantage
Safety
It has passed strict certifications such as UL1642, IEC62133-2:2022, UN38.3, CE, RoHS, and FCC. There was no combustion or explosion in the needle puncture, compression, and overcharge tests, meeting the safety standards for air transportation.
It has no memory effect, supports charging and using at any time, and has minimal long-term storage loss.
Durability
The cycle life exceeds 3,000 times, which is 10 to 15 times that of lead-acid batteries. High-temperature resistant (operating at -30℃ to 75℃), with optimized low-temperature performance (3C discharge capacity at -30℃ ≥80%).
Environmentally friendly and non-toxic, its carbon emissions throughout the life cycle are 40% lower than those of ternary batteries, and it complies with the EU REACH and RoHS standards.
Performance
The energy density is approximately 180-200Wh/kg, approaching the level of some ternary lithium batteries. It supports high-rate charging and discharging (3C discharge temperature rise < 25℃), and the voltage platform is stable, making it suitable for high-power output scenarios.


Application scenarios
Energy storage systems: Home energy storage (such as Tesla Powerwall compatible models), solar/wind energy storage, UPS backup power supply, communication base stations (5G/6G base station dedicated), data center backup power supply, grid-level energy storage power stations.
Power and Tools: Electric vehicles (A00 /A0 class models), electric bicycles, electric motorcycles, electric drills, electric saws, electric screwdrivers, unmanned aerial vehicles (high-range models), AGVs (Automated guided vehicles), electric forklifts, golf carts, Marine/railway power systems.
Lighting and equipment: High-intensity flashlights, outdoor searchlights, solar street lamps, portable medical equipment (such as defibrillators, ventilators), military equipment (such as individual soldier communication equipment, night vision devices, unmanned aerial vehicles), aerospace equipment (such as satellite power supplies).
Special scenarios: outdoor adventure equipment, emergency power supplies (fire/rescue), medical implant devices (requiring high safety), renewable energy storage (photovoltaic/wind power), industrial robots, intelligent warehousing systems.
